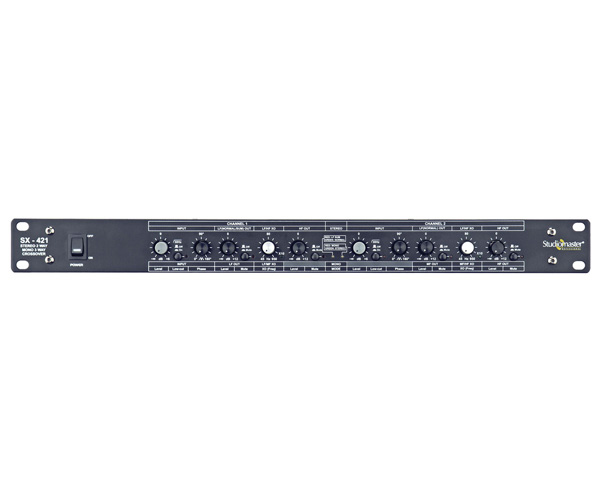

The Studiomaster Professional SX 421 is a high-Precision 2-Way Stereo, 3-Way Mono Crossover

  • 2 Way Stereo & 3 Way Mono Active Crossover.
  • Crossover Frequency control on the front panel.
  • Color coded for easy connections.
  • 24dB / Octave Slope.
  • Crossover Frequency : 45Hz - 9.5kHz.
  • Individual output mute for easy band adjustment.
  • Low cut switch.
Input Impedance 10K Ω Unbalance/20K Ω  Balance
Output Level/Impedance 0.775V, Max 7V Balanced
S/N ratio >100 dB
Crossover frequency range 45 Hz -9.5KHz
THD 0.05%
Low Cut -3dB@30Hz
Input sensitivity 0dBu
Slope (Low, Mid, High 24dB/octave
Subwoofer slope -
Power supply 230 V / 50 Hz
Dimension (W X D X H)mm 483 x 120 x 44.5 (1U)
Net Weight (Kgs.) 2.3
