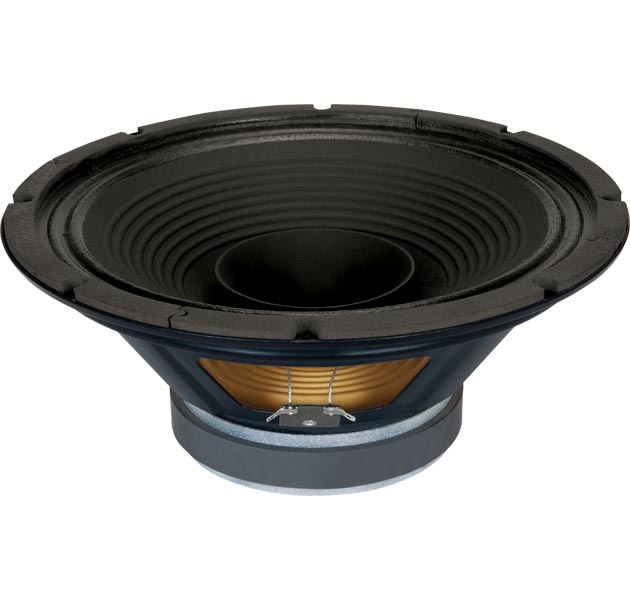

• 12” dual cone speaker with a continuous power handling capacity of 200 watts RMS.
  • Pressed steel frame and robust construction.
  • Well balanced, wide spectrum frequency response.
  • High quality specially designed imported cones and spider for extremely clear, low distortion sound reproduction.
  • Imported 2” CCAW voice coil with high temperature rating for safe, reliable operation.
  • Ideal for keyboard, musical & wide variety of PA applications.
Power Rating 200W RMS
Nominal Diameter 305mm (12")
Nominal Impedance 8
Sensitivity (1W/1m ) 97dB
Magnet Weight 1.16kg
RESONANT FREQUENCEY (Fs) 50Hz
DC Resistance (Re) 6.8
Electromagnetic Q (Qes) 0.92
 Mechanical Q (Qms) 3.26
Total Q (Qts) 0.72
Surface Area of Cone (Sd) 510cm2
Reference Efficiency (o) 3.6%
Voice Coil Diameter 2.0”
Overhang (Xmax) 2.5mm
Moving Mass (Mms) 36.7gm
BL Product (BL) 11.2TM
Coil Inductance (Le) 0.69mH
 Overall Diameter 313mm
Depth 127mm
Baffle Hole Diameter 285mm
Bolt Mount Diameter (PCD) 295mm (8 Bolts)
Weight 4.16kg
