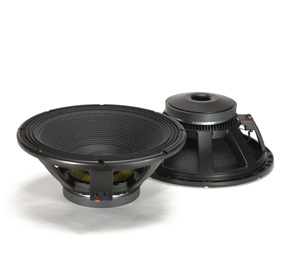

The LF18G401 is a 18-inch woofer with linear frequency response cheracteristics and very high power handling.

The LF18G401 uses a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround.
This combination provides remarkable strength and peak to peak maximum excursion of 50mm.



  • 4-inch, fiberglass inside/outside copper voice coil
  • 1800W continuous program power handling
  • 98 dB Sensitivity
  • 30 Hz – 1 kHz Frequency range
  • Dual spider design with silicon based dampening control
  • Triple-roll surround and corrugated straight cone geometry
Nominal Diameter 460 / 18 mm/inch
Rated Impedance 8 Ω
Program Power 1800 W AES
Power handling capacity 900 W AES
Sensitivity 98 dB
Frequency Range 30 Hz ÷ 1000 Hz
Effective Piston Diameter 395 / 15.6 mm/inch
Max Excursion Before Damage (peak to peak) 50 / 2.0 mm/inch
Minimum Impedance 5.9 Ω
Voice Coil Diameter 100 / 4 mm/inch
Voice Coil Material Copper
Voice Coil Winding Depth 23 / 0.9 mm/inch
Number of layers 2
Kind of layer inside / outside
Top Plate Thickness 12 / 0.5 mm/inch
Cone Material No pressed pulp
Cone Design Straight
Surround Material Polycotton
Surround Design Triple roll
