Incredibly linear frequency response characteristics, the highest power handling of any comparable 18-inch transducer, the lowest power compression.

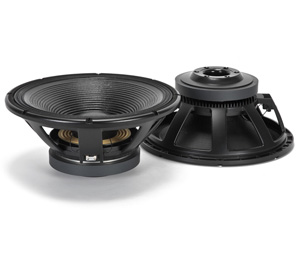

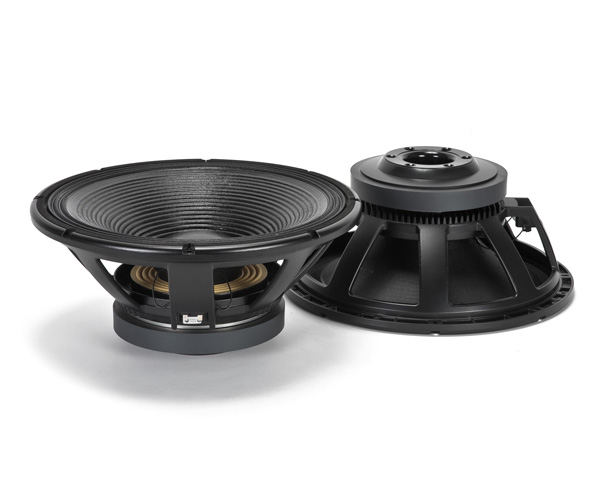

The LF18X451 features a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround: this combination provides remarkable strength and a peak to peak maximum excursion of 54 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling. A double silicon spider system ensures excellent control during large excursions. A fully optimised T-pole design generate the minimum amount of flux modulation.



  • 4,5 - inch fiberglas Inside/Outside copper voice coil
  • 3600 Watt continuous program power handling
  • 97 dB Sensitivity
  • 30 Hz - 1 kHz Frequency range
  • Dual Forced Hyperventing System
  • Dual spider designed with silicon based damping control
  • BL of 30.5 Txm to provide a faster and accurate low frequency
Nominal Diameter 460/18 mm/inch
Rated Impedance 8 Ω
Program Power 3600 W AES
Power handling capacity 1800 W AES
Sensitivity 97 dB
Frequency Range 30 Hz ÷ 1000 Hz
Effective Piston Diameter 395 / 15.6 mm/inch
Max Excursion Before Damage (peak to peak) 54/2.12 mm/inch
Minimum Impedance 6.8 Ω
Voice Coil Diameter 115 / 4.5 mm/inch
Voice Coil Material Copper
Voice Coil Winding Depth 34 / 1.33 mm/inch
Number of layers 2
Kind of layer inside / outside
Top Plate Thickness 15 / 0.6 mm/inch
Cone Material No pressed pulp
Cone Design Straight
Surround Material Polycotton
Surround Design Triple roll
