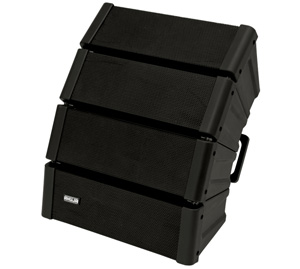

• A full bandwidth modular line array comprising 4 trapezoidal enclosures arrayed in a vertical pattern for controlled directivity. The four enclosures are intended to be used as an integrated unit, and are packaged as a single variable dispersion system with nominal impedance 8 ohms.
  • The line array package is aesthetically elegant and handsome, and also delivers exceptionally good, clear, intelligible sound – directed wherever it is most required. The line array is supplied fitted with a wall mount bracket and handle. The relative angle between each of the enclosures is adjustable from 15 degrees to 60 degrees in 15 degree increments.
  • Ideal for use in Auditoria… Gymnasiums… Sports Arenas… Indoor Stadia… Malls… Reception Halls…
 Input Power 200W RMS
 Frequency Response 70 to 20kHz (60° mode), 75 to 20kHz (45° mode),
80 to 20kHz (30° mode), 85 to 20kHz (15° mode)
Speaker Woofer 4 x 127mm (5”) Tweeter 12×25.4mm (1”) Dome Tweeter
SPL at (1W/1m) 96dB (60° mode), 97dB *45° mode),
98dB (30° mode), 99dB (15° mode)
Nominal Impedance 8
Crossover Frequency 4kHz
Input Connectors Speakon + Terminal Strip
Dimensions W408×H546×D342 mm
Weight 16.00kg
