- For Indoor & Outdoor applications such as in Halls, Auditoria, Airport Lounges.
- Weather resistant — for use under roof eaves. Foam layer to protect speakers from dust.
- Array of speakers radiate forward sound beam for wider audience coverage.
- Mounting clamps & hardware supplied.

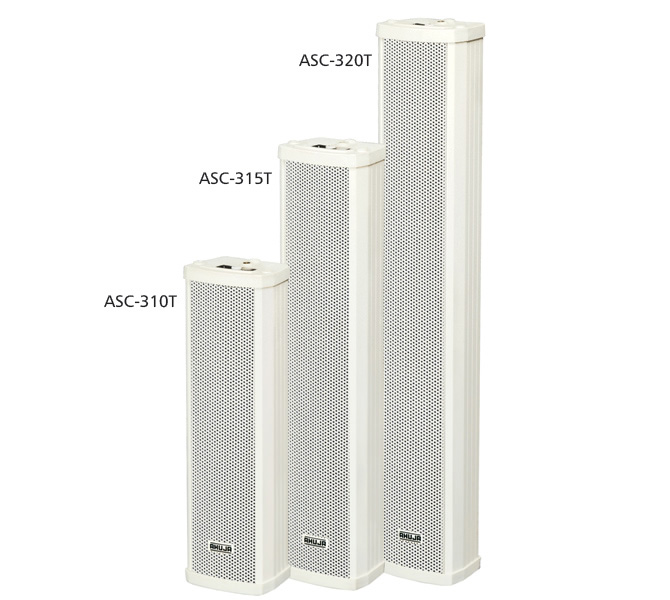

- Slim, compact, aesthetically designed column speakers.
- Off-white colour to integrate with most interiors.
- Aluminium extruded cabinet with moulded plastic covers, metal mesh grille.
- 100V line matching transformer with rotary switch
- for power tap selection.
| ASC-320T |
| Input Power |
20W RMS 30W Max. |
| Power Taps |
20/15/10/5W |
| Impedance/Voltage |
100V |
| Frequency Response |
150-15,000Hz |
| SPL at 1kHz |
93dB/1W/1m |
| Speaker |
4 × 5”×3” |
| Dimensions |
W115 × H658 × D89 |
| Weight |
3.39kg |
| ASC-315T |
| Input Power |
15W RMS 23W Max. |
| Power Taps |
15/10/5/2.5W |
| Impedance/Voltage |
100V |
| Frequency Response |
150-15,000Hz |
| SPL at 1kHz |
91.5dB/1W/1m |
| Speaker |
3 × 5”×3” |
| Dimensions |
W115 × H524 × D89 |
| Weight |
2.73kg |
| ASC-310T |
| Input Power |
10W RMS 15W Max. |
| Power Taps |
10/7.5/5/2.5W |
| Impedance/Voltage |
100V |
| Frequency Response |
150-15,000Hz |
| SPL at 1kHz |
90dB/1W/1m |
| Speaker |
2 × 5”×3” |
| Dimensions |
W115 × H389 × D89 |
| Weight |
2.08kg |
