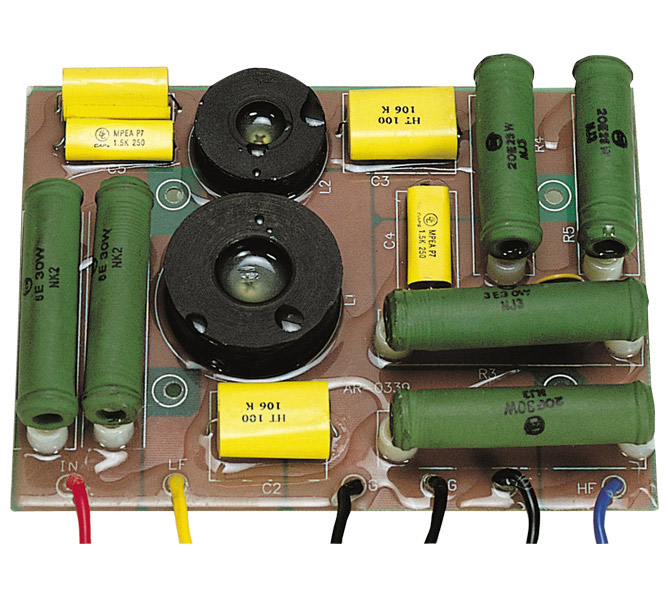

• Professional 2-Way Passive Crossover Network.
  • Designed for use with 1 no. LF woofer AHUJA model L15-MB300.
  • HF driver CDH-800.
  • PTC for HF protection.
  • High power and Low resistance Air core coils.
  • High quality metallised polyester capacitors.
Type Two-way crossover
Power Capacity 350W
Crossover Frequency 2kHz
Nominal Impedance 8
Low Pass Filter Slope 12dB/Octave
High Pass Filter Slope 18dB/Octave with protection
Dimensions W187 x H32 x D141 mm
Weight 0.72kg
