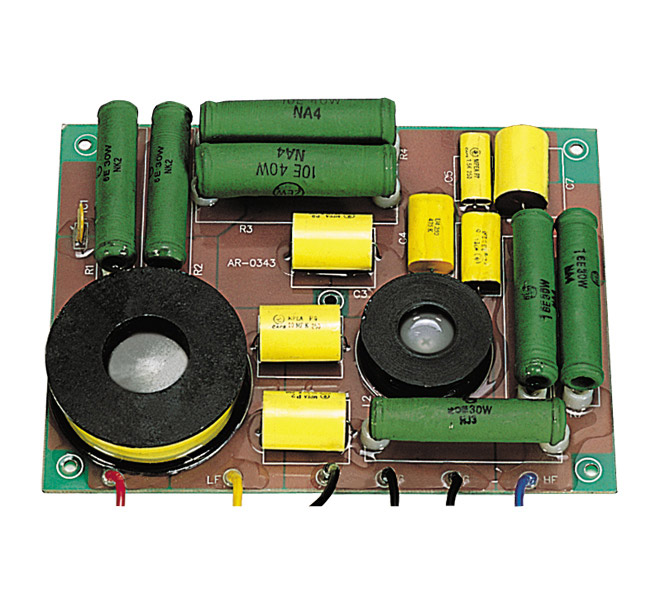

• Professional 2-Way Passive Crossover Network.
  • Designed for use with 1 no. LF woofer AHUJA Model L15-LF500.
  • HF driver CDH-1000.
  • PTC for HF protection.
  • High power and Low resistance Air core coils.
  • High quality metallised polyester capacitors.
Type Two-Way Crossover
Power Capacity 500W
Crossover Frequency 1.2kHz
Nominal Impedance 8
Low Pass Filter Slope 12dB/Octave
High Pass Filter Slope 18dB/Octave with protection
Dimensions W225 x H35 x D169 mm
Weight 1.2kg
