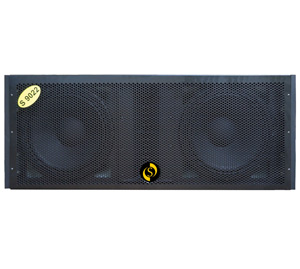

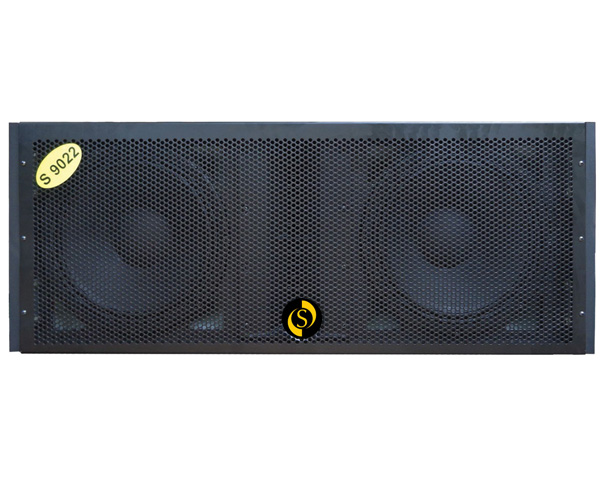

The Studiomaster Professional S 9022 is a high performance dual 12” Line Array enclosure optimized to deliver unequalled fidelity and coverage. When the venue calls for a high-powered array, the S 9022 is the logical choice for demanding designers, operators and audiences.

  • High performance dual 12” RCF LF & two High quality 1” HF transducers.
  • Exceptional sound quality, powerful response & long throw.
  • High grade & durable cabinet design.
  • Easy carry handles & heavy duty protective grille.
  • Fast, integral rigging system with variable splay angles.
  • HF frequency attenuation for selection of throw.
  • Constant Curvature waveguide for unprecedented arraycoherence.
  • Coverage Pattern: 100 degree x 9 degree nominal (horizontal x vertical), single unit.
  • Extra textured anti-scratch paint finish.
  • High-quality passive crossover network for maximum reliability.

S 9022 System Consists of:

  • S 9022: High performance dual 12’’, 2 way passive, 900 watts line array module.
  • S 9022 Kit: Fly bar (Fly bar) & rigging hardware..
System Type Line Array
Frequency Range 50-20 KHz
POWER RATING RMS / Peak 900W / 1800W
System Maximum SPL 134 dB
Sensitivity (1w @ 1m) dB 98dB LF / 100dB HF
LF Component 2 x 12" Woofer
HF Component 2 x 1.5" Driver
Nominal Impedance (Ω) 4
Horizontal Coverage Angle 100°
Vertical Coverage Angle 9°
Crossover Frequency 1300 Hz
Enclosure 15 mm Plywood
Input Connectors Speakon
Dimensions (W x D x H) mm 960 x 560 x 386
HF Selection Switch HF HI-LO Selection switch (HF attenuation switch 2dB)
Variable splay angles 0, 3, 6 & 9 deg C
Net Weight (Kgs.) 55
