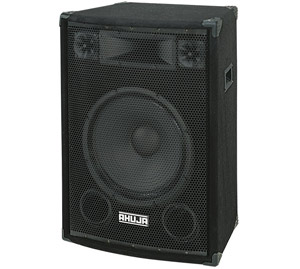

• Professional 3-Way speaker system consisting of one high efficiency, high SPL 15” LF speaker, a 1” HF Compression Driver and two Piezo Tweeters, for excellent high frequency response. The speaker system has a high efficiency that makes it particularly good value as high levels of acoustic power can be achieved without drawing excessive power from the amplifier. The system is housed in a Rugged Bass Reflex Trapezoidal Enclosure made of 18mm board, and Carpet covered. A Stand Adapter is provided at the bottom for stand mounting. The trapezoidal cabinet design assures optimum low frequency performance. An On/Off switch for the piezo speakers is provided to limit extended HF if desired. The speaker is ideal for PA as well as music performances.
 Input Power 300W RMS
Configuration Three Way
Frequency Response 40-20,000Hz
Low Frequency Speaker 1 x 15”, Dia 3” Edge Wound Voice coil
High Frequency Unit Dynamic Horn, Aluminium Die-cast 4”x10” + 2 Piezo Tweeters
 SPL at (1W/1m) 100dB
 Max. Rated SPL 125dB
 Nominal Impedance 8
Crossover Frequency 4kHz
Port Free Flow Flared
Input Connectors 1/4” Phone Jack + Terminal Strip
Dimensions W550 × H755 × D425 mm
Weight 33.00kg
