Products
Speakers
PA Wall Speakers

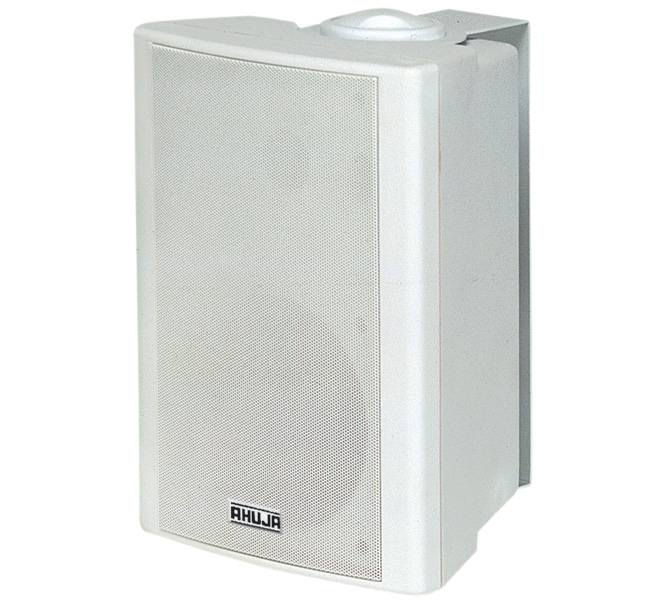

PS-500T
2-Way Compact PA Wall Speaker • 30 WATTS
Download PDF
Send Enquiry
View gallery
Features
Specifications
High Fidelity sound for music.
Speaker System consists of woofer & dome tweeter.
Elegant plastic cabinet in white colour.
High fidelity 2-Way, 100V multi purpose PA speaker system.
100V, Power taps of 32W, 16W, 8W.
Facility to use as 8 ohms Low Impedance Speaker available.
Power Taps can be selected through an easily accessible rotary switch.
Weather Resistant Speaker.
Movable mounting bracket supplied, can be mounted in vertical or horizontal positions.
Ideal for background music in offices, banks, restaurants, showrooms etc.
Input Power
32W RMS / 48W Max.
Rated Voltage
100V
Power Taps on 100V
32/16/8W
Low Impedance
8
Frequency Response
80-20,000Hz
SPL at 1kHz (1W/1m)
87dB
Speaker
Woofer 125mm (5”) Tweeter 13mm dome
Dimensions
W178 × H252 × D144 mm
Weight
2.65kg
