PA Wall Speakers

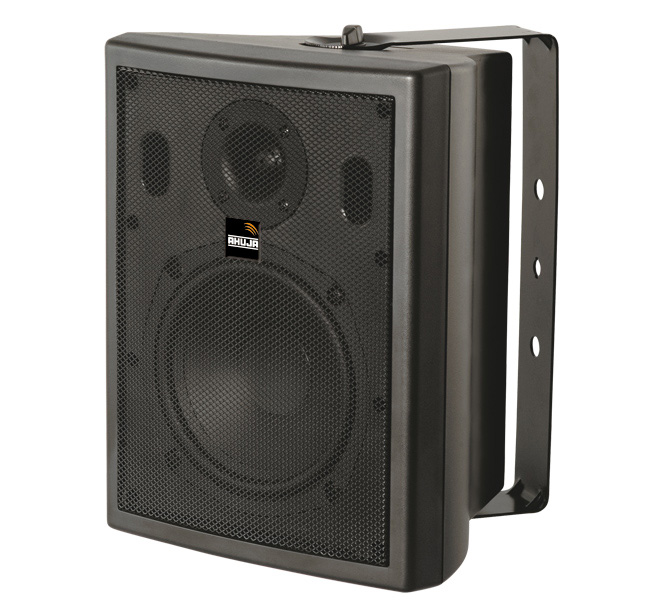

SMX-602/602T
2-Way Compact PA Wall Speakers • 60 WATTS
Download PDF
Send Enquiry
View gallery
Features
Specifications
High fidelity 2-Way speaker system in compact & elegant black plastic housing.
Comprises of a Polypropylene Woofer and a Titanium Dome Tweeter.
SMX-602 is a low impedance 8 speaker.
SMX-602T is meant for use on 100V line with power taps of 60W, 30W &15W.
Easy power tap selection through a slotted rotary switch knob at the rear.
U type bracket for convenient wall mounting of the speaker.
Input Power
60W RMS
Power Taps
60W, 60/30/15W
Impedance/Voltage
8, 100V
Frequency Response
55-20,000Hz
SPL at 1kHz (1W/1m)
88dB
Speaker
Woofer 163mm (6 ½”) Tweeter 25mm (1”)
Dimensions
W230 × H300 × D200 mm
Weight
3.10kg/3.65kg
