Products
Speakers
PA Wall Speakers

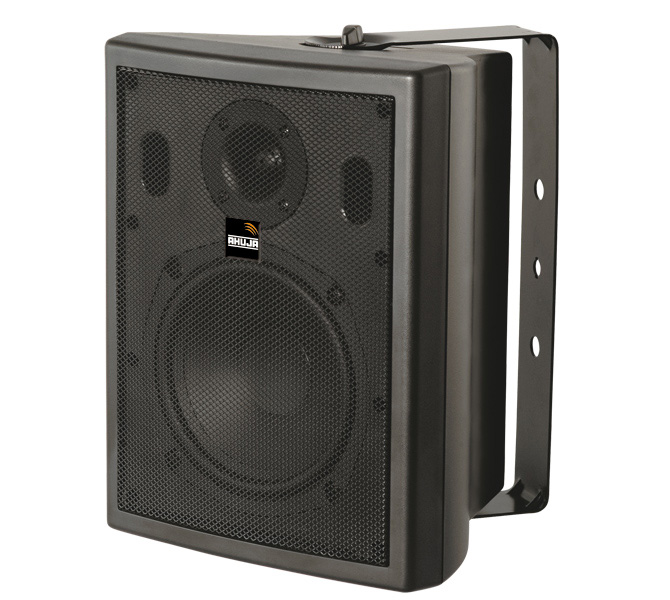

SMX-902/902T
2-Way Compact PA Wall Speakers • 90 WATTS
Download PDF
Send Enquiry
View gallery
Features
Specifications
High fidelity 2-Way speaker system in compact & elegant black plastic housing.
Comprises of a Polypropylene Woofer and a Titanium Dome Tweeter.
SMX-902 is a low impedance 8 speaker.
SMX-902T is meant for use on 100V line with power taps of 90W, 60W & 30W.
Easy power tap selection through a slotted rotary switch knob at the rear.
U type bracket for convenient wall mounting of the speaker.
Ideal for various background music & general PA application.
Input Power
90W RMS
Power Taps
90W, 90/60/30W
Impedance/Voltage
8, 100V
Frequency Response
55-20,000Hz
SPL at 1kHz (1W/1m)
90dB
Speaker
Woofer 200mm (8”) Tweeter 25mm (1”)
Dimensions
W280 × H380 × D220 mm
Weight
4.43kg/5.70kg
