• Stereo Music input for DJ programmes.
  • Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
  • Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Bar Graph Signal Display.
POWER OUTPUT 750W + 750W Max., 500W + 500W RMS at 10% THD
  450W + 450W RMS at 5% THD, 415W + 415W RMS at 2% THD
OUTPUT REGULATION 2 dB, no load to full load at 1kHz
INPUT CHANNELS Mono 2 × 200mV/100k
  Stereo L/R 200mV/100k, Line L/R 1V/50k
FREQUENCY RESPONSE 50-15,000Hz ±3dB
SIGNAL TO NOISE RATIO 60dB
TONE CONTROLS Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
OUTPUTS Line 1V/1k
SPEAKER OUTPUTS 4, 8, 70V & 100V for each zone
POWER SUPPLY AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery)
POWER CONSUMPTION AC: 1600VA DC: 16A
DIMENSION W510 × H220 × D440 mm
WEIGHT 40.0kg

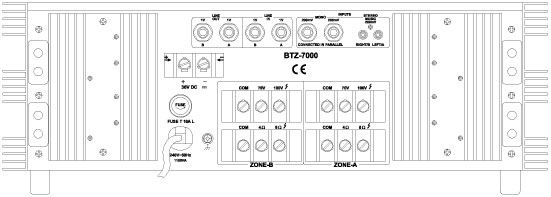

Back view
