• Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-350 to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Power Output 450W Max., 350W RMS at 10% THD
  320W RMS at 5% THD, 300W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels 7 × Mic 0.8mV/4.7k, 1 × Aux 100mV/470k
  1 × Aux 200mV/470k, 1 × Line 1V/50k
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600, Line 1V/1k
Speaker Outputs 4, 8, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 36V (3 × 12V Car Battery)
Power Consumption AC: 660VA DC: 6A
Dimensions W480 × H160 × D360 mm
Weight 20.5kg

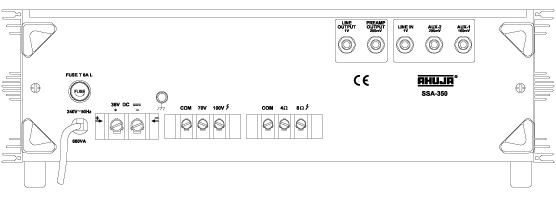

Back view
