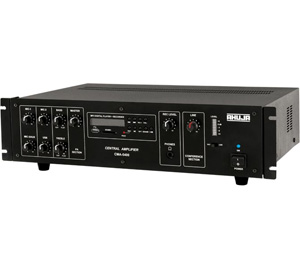

• Central Amplifier has a digital recorder for recording the proceedings. Also it can playback the pre-recorded messages.
  • Switchable send/return facility in Central Amplifier.
  • Three Mic inputs and one Aux input for various user applications.
  • 50W PA Amplifier for adequate sound reinforcement.
  • Headphone output provided in Central Amplifier for monitoring purposes.
  • AC Mains & 24V DC operation.
  • Central Amplifier is 19" rack mountable.
  • Central Amplifier has the facility of feeding two independent groups of Delegate Units as required in large conference setups.
  • Conference System can be installed in a bus bar arrangement by using Junction Boxes CB-45.
Line Output 1 17.5V DC/3A Max.; -34dBV (20mV)
Line Output 2 17.5V DC/3A Max.; -34dBV (20mV)
Power Output 50W RMS at 2% THD, 90W Max.
Inputs 3×Mic 0.65mV/4.7k, 1×Aux 100mV/470k
 Frequency Response 60-14,000Hz (± 3dB)
S/N Ratio > 60dB
Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Preamp Output 200mV/600
Line Output 1V/1k
Send Output 200mV/600
Return Input 200mV/10k
Speaker Output 4, 8, 16, 70V & 100V
Power Requirement AC: 220-240V, 50/60HZ, DC: 24V (2×12V Car Battery)
Power Consumption 250VA
Protections AC Fuse 1×3 Amp , DC Fuse 2×10 Amp
Dimensions W483 × H110× D325 mm
 Weight 10.50kg
 Accessories 1× Connection Cable CC-46
1× Extension Cable CC-47
1× Fuse 3 Amp, 2 × Fuse 10 Amp.
