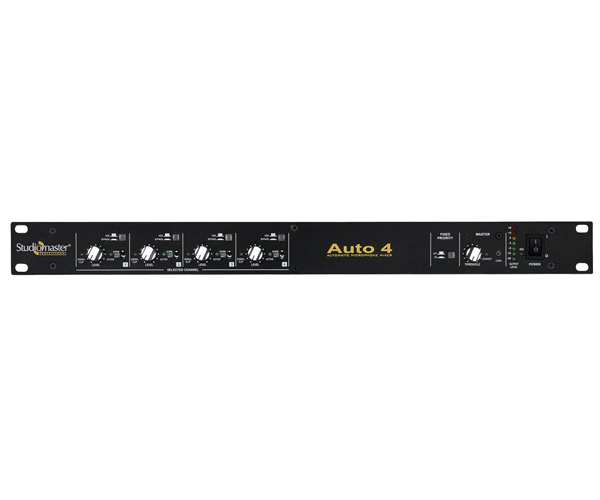

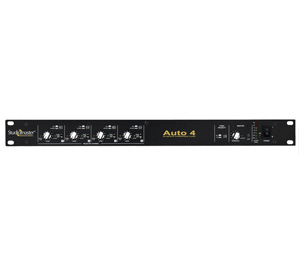

The Studiomaster Professional Auto 4 offers an advanced level of ease in sound system installations. It's the quickest, easiest, and most effective way to set up a multiple-mic room without requiring an operator to monitor the board. With the help of the Auto 4 you can 'fit it' - 'forget it' & expect the same level of performance day in & day out. With the unique 'Auto Sense' technology & 'NOM' the Studiomaster Professional Auto 4 is sure to be one of the best auto-mixing solutions currently available.

Auto Sense Threshold Modes NOM Infinite Linking
The 'Auto Sense' Technology in theAuto 4 automatically gates microphones (turns on or off), based on the threshold & priority settings. Three threshold settings available on-board, a feature unique to the Auto 4. Loud-Normal-Soft. NOM (Number of openMics) based gain attenuation. Two or More Auto 4's can be linked to each other with the help of a simpleCAT5 cable.

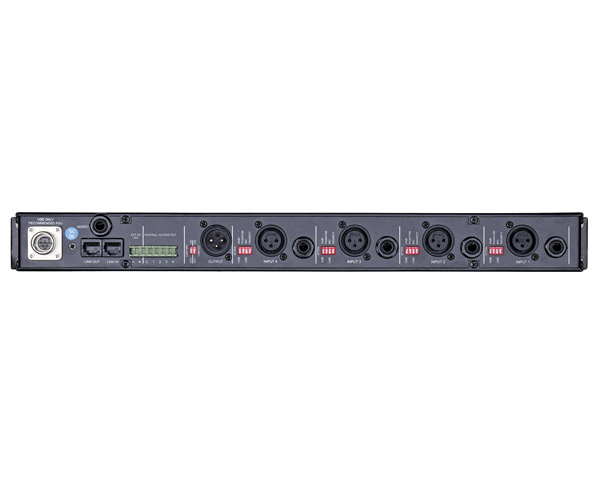

Inputs

  • Balanced XLR & 6.3mm Jack Input Connectors.
  • MIC / Line (for Wireless Mic) switchable per channel.
  • Switchable priority on each channel.
  • Selectable 'Ducking' Level (-12dB & -20db) for all non-priority channels.
  • Switchable phantom supply on each mic channel.
  • The Unique 'Voice-Level' threshold set-up allows flexibility of setting without the complexity of a constant varying threshold.
  • Lockout LED indicating the high priority speaker is active.

Priority

  • Programmable priority via individual channels setup.
  • Alternatively a 'Fixed' priority, with a sequential hardwired priority.
  • Vox bypass for emergency channels or Background Music application.
  • Switchable 'Last MIC On' that eliminates ambience dropouts, ensuring that there is always some background ambience present even if no one is currently speaking.
  • Works on external 24V DC.
  • Control signal (5V) to activate external devices like a camera, disabling overhead speakers, etc.
  • Insert to connect to feedback destroyers or other dynamic processors.
Model Auto 4
Input Impedance
Mic        >4,000 ohms
Line        >30,000 ohms
Output Impedance <200 ohms
Maximum Input Level
Mic -30 dBu
Line Maximum Output Level* +20 dBu
Maximum Output Level*
Line +14 dBu
Maximum Gain >70 dB
Inactive Channel Attenuation 12dB or 20dB switch-selectable
Frequency Response 60 Hz to 30 kHz at - 3dB points
Dynamic Range** 75 dB ± 10 dB, dependent upon gain control settings
Equivalent Input Noise –120 dBu (150 ohms) at maximum gain
Switch-selectable Options  Limiter (above 0dBu), Last Mic On
Microphone Phantom +48V DC
Control Voltage Out +5V DC
Power Requirement Operating Temperature 230V AC, 100 mA, max. for external SMPS /+24V DC, 250mA max. for external DC supply 0° to 40° C
Dimensions (W  x D x H) mm 482.6 x 135 x 44
Weight 2.2 Kg
Included Accessories SMPS with connectors, Link Cable
