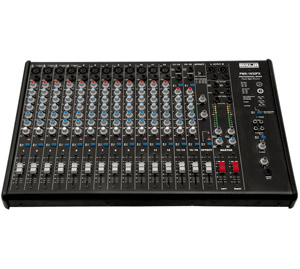

• Rugged, stable, high quality analog mixer with user-friendly construction & aesthetically designed side panels.
  • Twelve MIC/LINE Balanced Mono inputs with enhanced headroom.
  • All MIC inputs are through 3 pin F/XLR connectors.
  • All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
  • Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
  • Two STEREO Balanced inputs in two selectable sensitivities of -10dBu & +4dBu.
  • Separate EFFECT channel is provided for controlling the built-in digital effect processor through a delay selector switch and delay, repeat and level controls.
  • Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader AUX2 /EFX control & a PAN control.
  • Each Stereo channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
  • Channel ON/OFF switch provided on each individual channel.
  • Peak LED for signal clipping indication.
  • High precision 60mm slide fader on each channel.
  • Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
  • Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
  • Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
  • Two stereo AUX RETURN balanced inputs with level controls.
  • Headphone output with Level Control for output monitoring.
  • Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
  • Stereo Record output through L&R RCA sockets.
  • Operates on 240V 50Hz AC mains.
 MIC INPUT
Impedance/Gain 2k Balanced/65dB
LINE INPUT
Impedance/Gain 20k Balanced/45dB
STEREO INPUT (L/Mono & R)
 Impedance/Gain (-10dBu Input) 10k Balanced/14dB
 Impedance/Gain (+4dBu Input) 10k Balanced/0dB
 THD <0.08%
 FREQUENCY RESPONSE
 L/R Line Output 25Hz - 20kHz (+0, -1dB)
 EQUALIZATION
 Bass/Mid/Treble ±12dB at 100Hz/2kHz/10kHz
 CLIP LED INDICATION 4 dB prior to true clip
 LINE OUTPUT
 Nominal/Max Level 4dBu/21dBu (1.22V/9V)
 IMPEDANCE 600
 DELAY SYSTEM Digital Signal Processing
 DELAY RANGE SETTINGS 1: 60-300ms, 2: 300-500ms, 3: 500-650ms
 HEADPHONE OUTPUT 200mV at 8, THD <1%
 MAXIMUM GAIN
 Mic Input to Line Outputs 78dB
 Line Input to Line Outputs 58dB
 Stereo Input to Line Outputs 28dB (-10dBu Input) 14dB (+4dBu Input)
 AUX Send (Pre) 1.4V/100 Unbalanced
 AUX Send (Post) 2.7V/100 Unbalanced
 AUX Return (L&R) 150mV/10k Balanced
 TAPE
 Record Output 250mV/600
 Playback Input 250mV/1k (variable thru’ GAIN control)
 SIGNAL TO NOISE RATIO >70dB
 POWER SUPPLY AC: 220-240V, 50Hz
 DIMENSIONS W609 × H110 × D435mm
 WEIGHT 9.7kg
