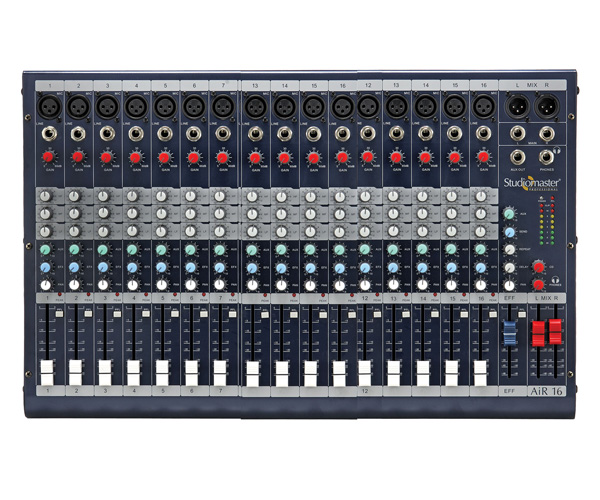

The Studiomaster Professional AiR Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability.

  • 16 Mic / Line
  • 3 Band EQ per channel.
  • 1 Aux send.
  • PFL (Cue) Switch with individual channel control
  • L/R pan pot and clip LED per channel.
  • Stereo RCA CD input with Control.
  • Delay EFX on board & FX send per channel.
  • 8 Segments L/R LED meter for master level.
  • Headphone output with level control.
  • Balanced XLR & ¼” Jack Master Output.
Gain (Mic/Line/Stereo Line) 60dB/40dB/20dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -5dBu / -60dBu
Line (Gain Min /Gain Max) +6dBu / -40dBu
Stereo Line (Gain Min /Gain Max) +10dBu / -20dBu
Main Output level (Nominal / Max) +0dBu (0.775V RMS) / +20dBu (7.75V RMS)
Frequency Response 20Hz to 20KHz (+0/-3 dB)
Total Harmonic Distortion < 0.03%
Signal to Noise Ratio -85dB
Clip indication 4 dB prior to true clip
Equalisation (Treble/Mid/Bass) ±15dB @ 12KHz/2.5KHz/80Hz Treble/Mid/Bass
EFX & USB EFX
Phantom supply -
Power Supply AC 240 V/50Hz
Dimensions (W x D x H in mm) 517 x 335 x 115
Net Weight (Kgs.) 6.3
