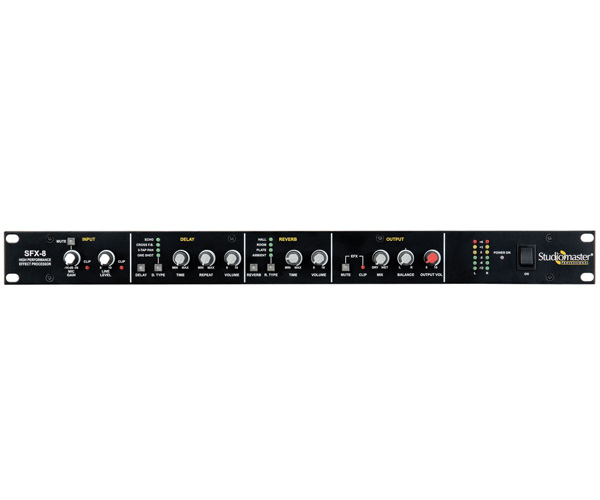

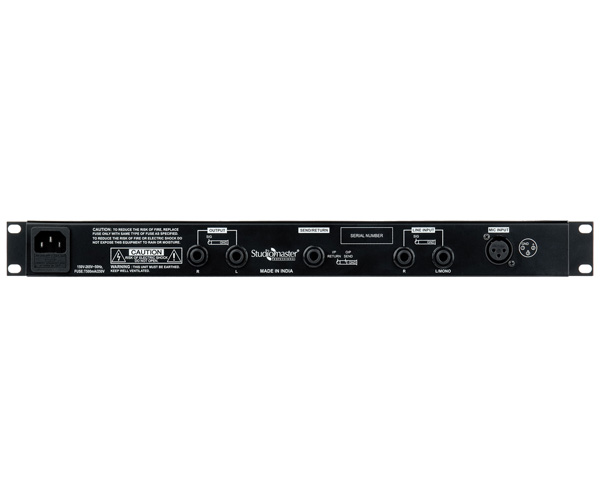

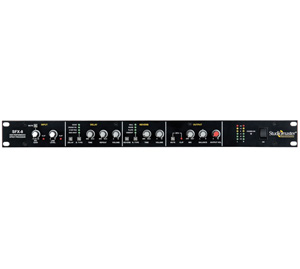

The Studiomaster Professional SFX 8 is a high performance digital effects processor designed for Professional performers who require high-fidelity effects.

  • Mic input (Balance) with GAIN control.
  • Mono/Stereo Line input (Unbalance) with level control.
  • Send/Return ensures the SFX8 can be used as an external effect processor with a mixer.
  • Delay & Reverb with separate controls & selection.
  • Delay & Reverb can be selected individually or combination of both giving more flexibility to user.
  • Wet/Dry signal mix control.
  • PAN control.
  • 6 led bargraph.
  • Stereo unbalanced Master output with level control.
Model SFX-8
Mono Mic Input Sensitivity -56 dBu (±1dB) at Gain Control Max
Mono Mic Input Impedance >3.0 KΩ
Stereo Line Input Sensitivity 0dBu (±1dB)
Stereo Line Input Impedance >27KΩ
Output Level 0dBu
Output Impedance <40Ω
Power supply AC 150-250V 50Hz
Dimensions (W x D x H) mm 482 x 175 x 44 (1U)
Net Weight (Kgs.) 2.1
